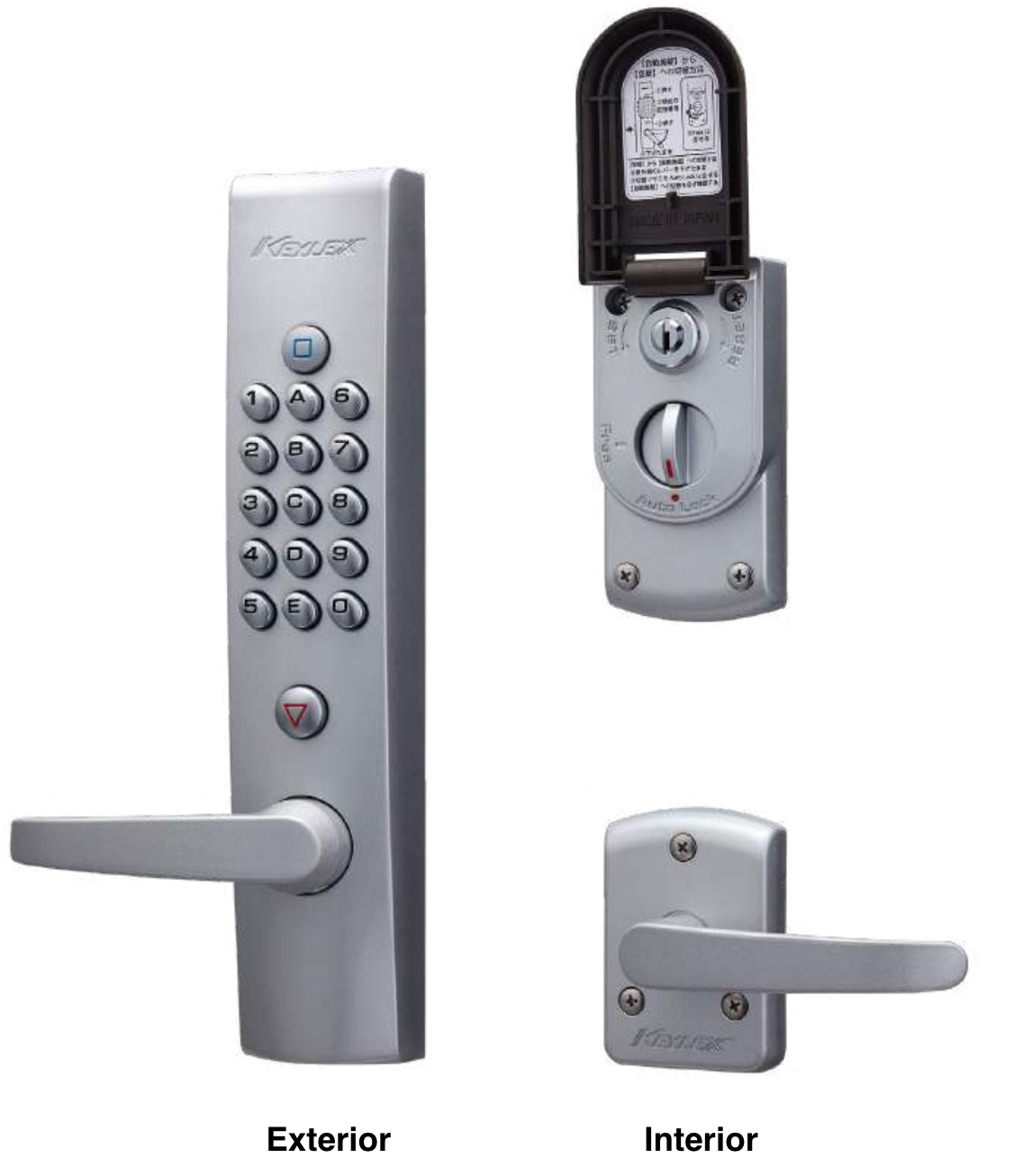

Autolock with Lever

  • No Electrical Work Required
  • Easy to Reset Passcode
  • High Visibility and Durability Buttons
  • High Security and Weather Proof
  • Changeover to Free-Passage/Dead Lock mode (Option)
  • Choice of Nagasawa original ADS lockset & US standard compliant tubular lockset
  • Material:
    Aluminum / Zinc alloy
  • Correspondence door thickness:
    Standard: 30-45mm (1.18-1.77inch)
    Contact us if you require > 45mm (1.77inch)
  • Backset:
    Standard: 60mm (2.36inch)
    Custom orders: 70 or 76mm (2.75 or 2.99inch)
  • Passcode:
    32,768 combinations
  • Correspondence door weight:
    Up to 80 kg (176.37 lb)

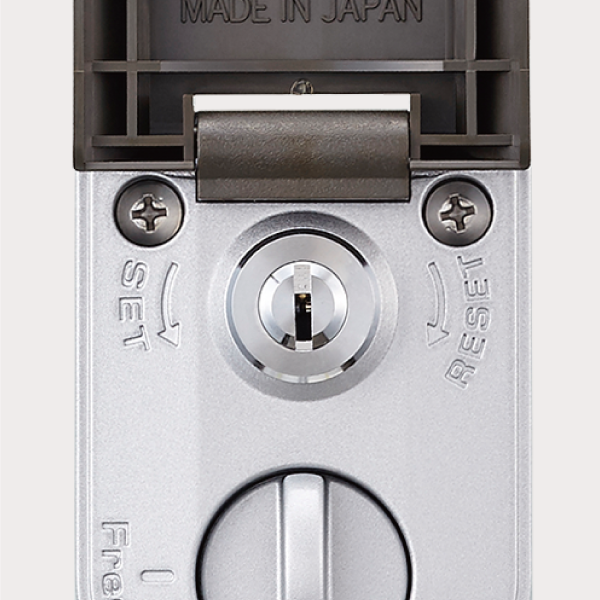

  • Easy Passcode Reset

    Change and set passcode easily without removing lock from door

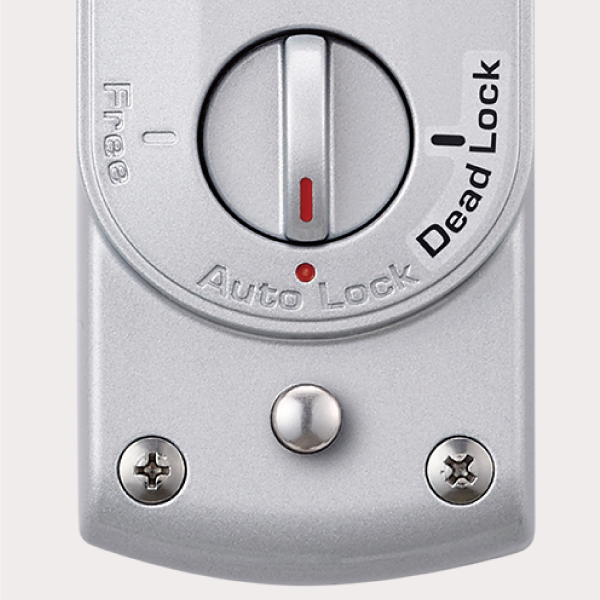

  • Free-Passage/Dead Lock (Option)

    3 option mode

    • Free-Passgae – No Passcode
      needed
    • Auto Lock – Passcode or Key
      needed
    • Dead Lock- Key needed

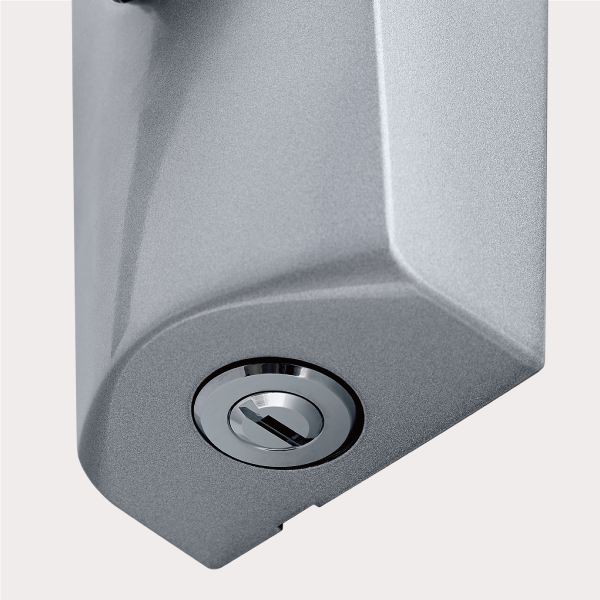

  • Key Accessibility

    The door can be unlocked with a key without using a passcode

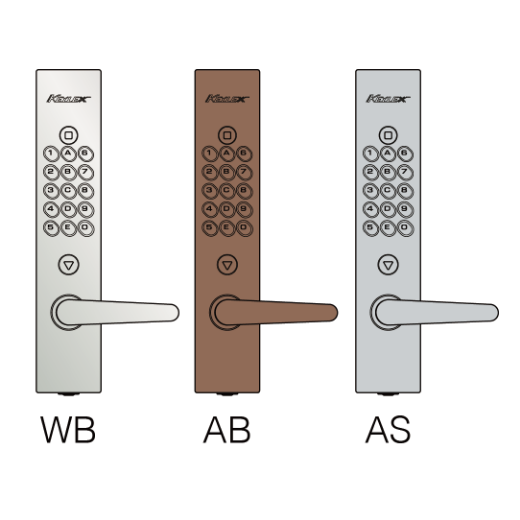

  • Color Variations

    3 color options available

    • Silver Plating (WB)
    • Amber Painting (AB)
    • Silver Painting (AS)
Key Changeover
Coin Slot Changeover
Double-sided Button
Cover / Backplate
